Desktop
- CPU: AMD Ryzen 7 5800X
- RAM: x4 Corsair RGB Vengeance 8GB DDR4
- Motherboard ROG Strix X570e Gaming Motherboard
- SSD: SABRENT Rocket Q 2TB NVMe PCIe M.2 (Windoze 10)
- SSD: Inland Professional 480GB SSD (Linux-PopOS)
Soon I will be moving Windoze to the standard SSD and rolling with EndeavourOS with btrfs for snapshots on the NVMe SSD
- GPU: GIGABYTE GeForce RTX 2060 OC 6GB GDDR6
Server 1 (XCP-ng)
- CPU: AMD FX-8350 8-Core CPU
- RAM: 16GB DDR3 Ram
- Storage
- 512GB WD SSD
- Seagate Barracuda 2TB HDD
- GPU: GTX 960 (Not really being used)
VMs
- Ubuntu 20.04 x4 Cores, 4GB Ram (Container host)
- Linuxserver-io/plex
- qmcgaw/glutun
ProtonVPN - network interface for qbittorrent container
- Linuxserver-io/qbittorrent
- Linuxserver-io/librespeed
- Linuxserver-io/heimdall
- Portainer/Portainer-ce
- Ubuntu 20.04 x1 Cores, 2GB Ram (Zabbix + Containers)
- grafana/promtail
- grafana/loki

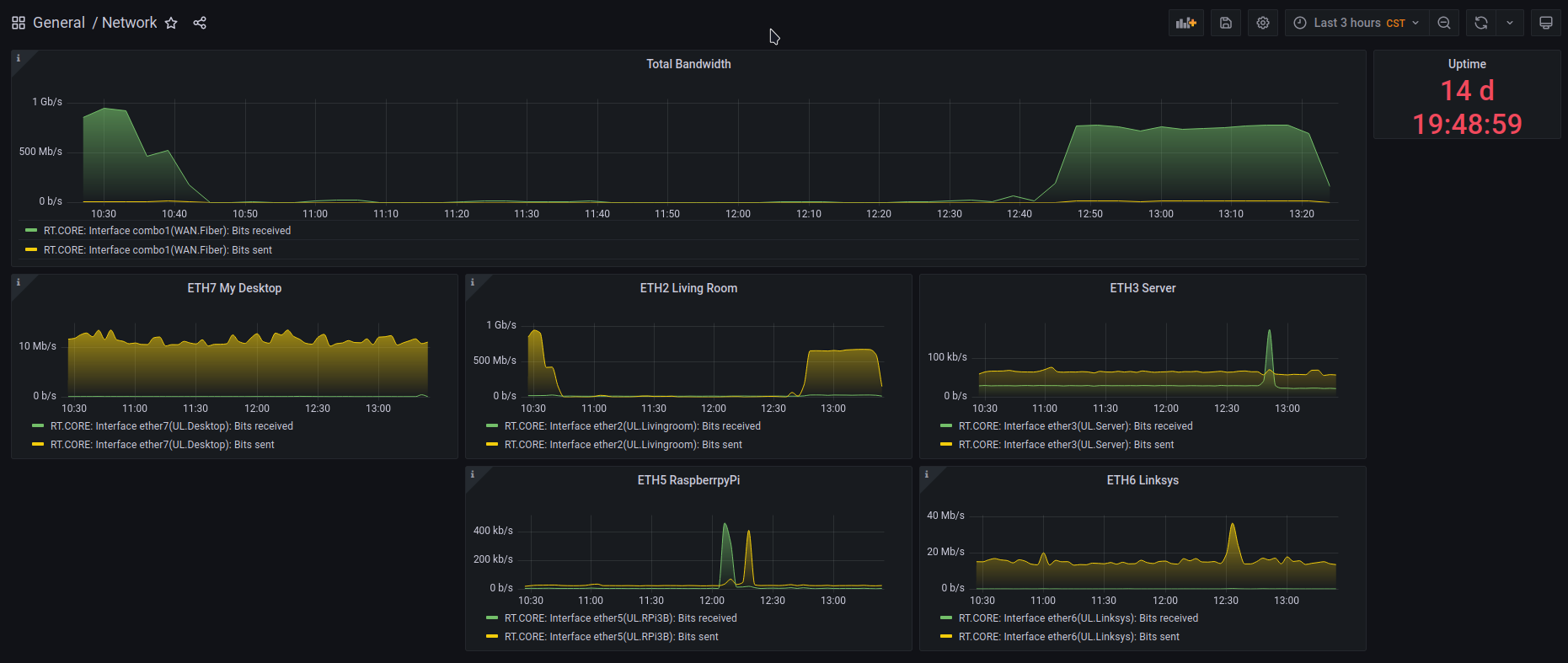

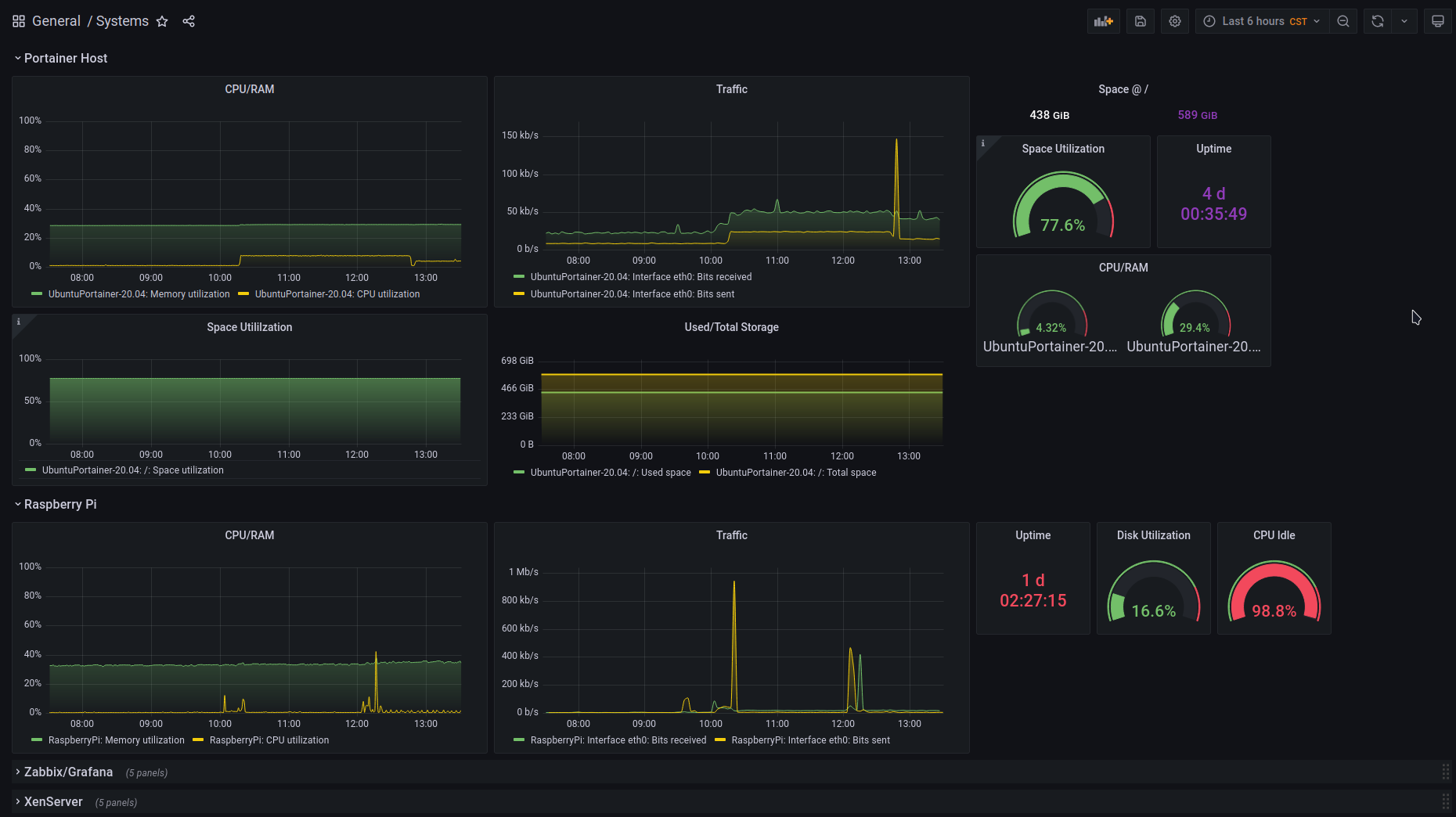

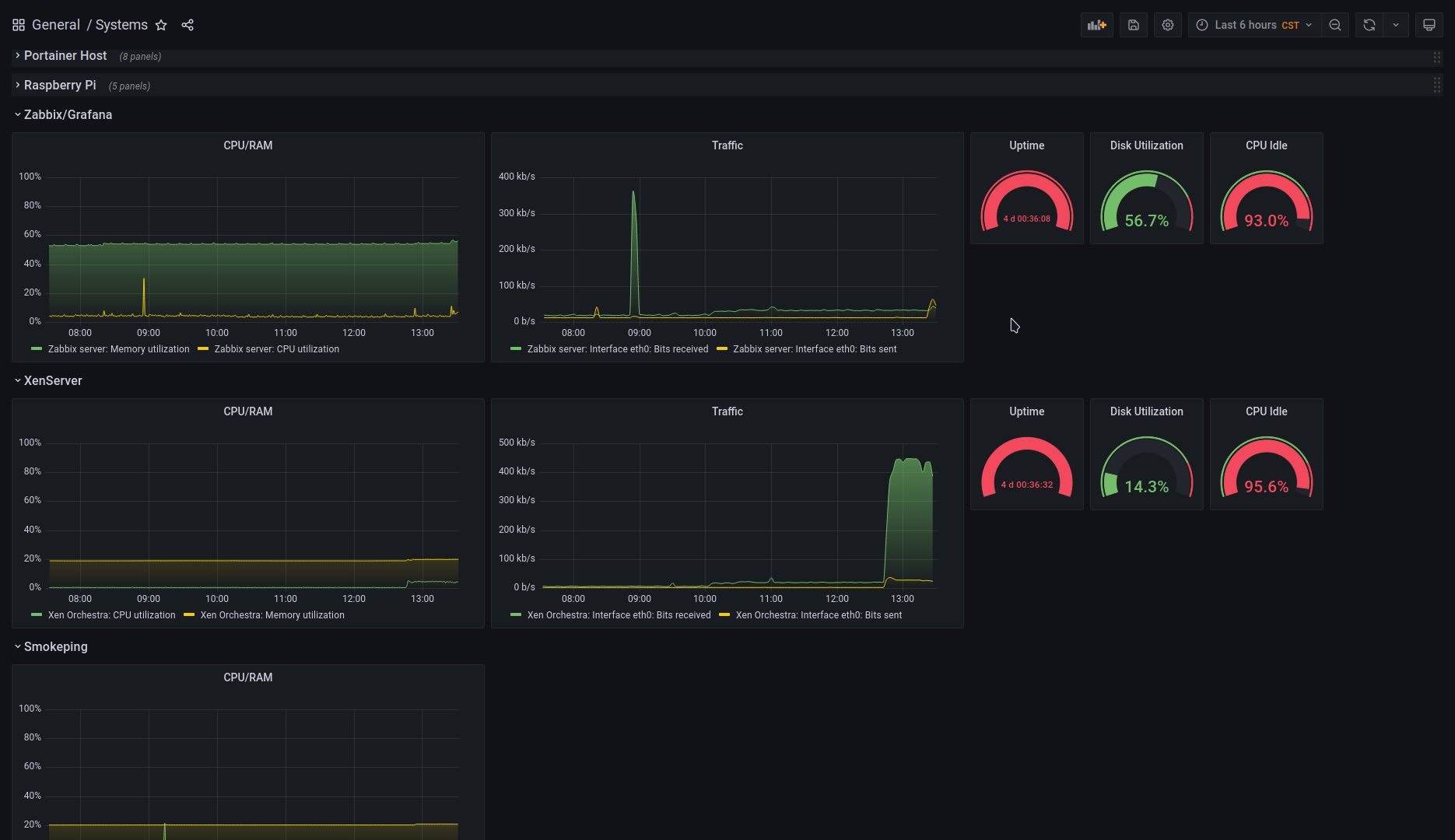

This box collects metrics via zabbix agent & snmp and provides me a nice pane of glass for hosts as well as network devices - see screenshots below
- Ubuntu 20.04 x1 Cores, 2GB Ram (Smokeping)
Server2 (Proxmox)
- CPU: 4 x AMD A12-9720P RADEON R7, 12 COMPUTE CORES ( HP Laptop )
- RAM: 12GB DDR3 Ram
- Storage:
- 64 GB SSD
- 1TB NFS Share (HDD on Truenas)
- 2TB NFS Share (HDD on Synology NAS in SHR )
- Home Assistant OS
- 2 CPU Cores, 4GB Ram
- Ubuntu 22.04 (Pihole #2)
- 2 CPU Cores, 4GB Ram
- Also runs Uptime-Kuma which gives me alerts on discord about outages. I put it on this laptop because laptops have a built in UPS and is essentially a crash cart
Server3 (TrueNAS Scale)
- CPU: Intel i5-3570 CPU @ 3.40GHz (HP Compaq Elite SFF)
- RAM: 8GB DDR3 Ram (I know, I need more!)
- Storage:
- 256GB SSD - TrueNas OS Drive
- 1TB HDD
- I know.. Just a single drive. During installation TrueNas yelled at me “no this is a bad idea, stop, you need more drives!” I had to click through multiple warnings - I was just tinkering around trying TrueNas out and as it turns out it’s amazing. Will be doing a very large pool on a better machine when I can afford to
